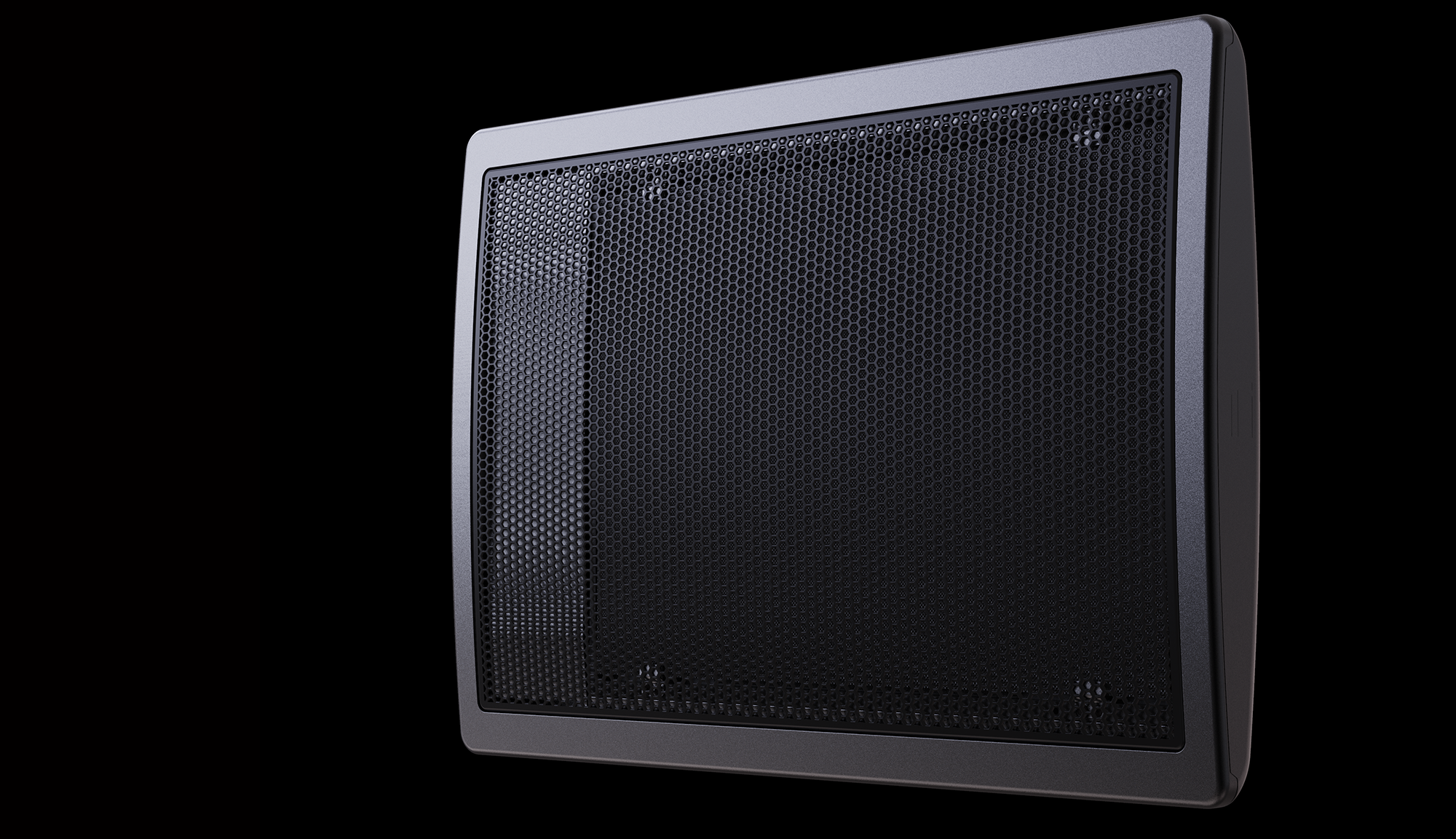

FlatPanel Audio DML 500 Speaker Distributed Mode Loudspeaker
Feedback Resistant Speaker

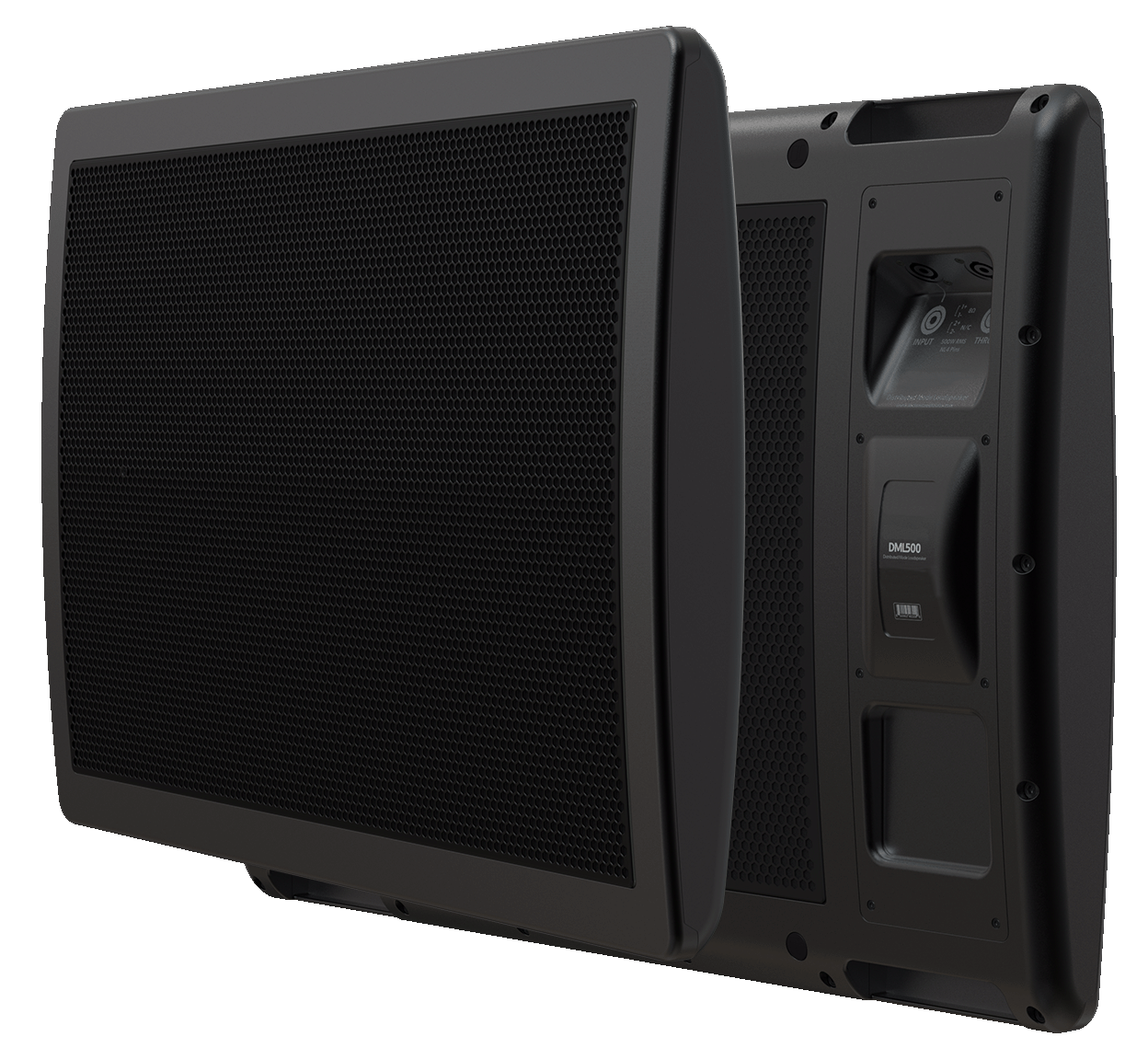

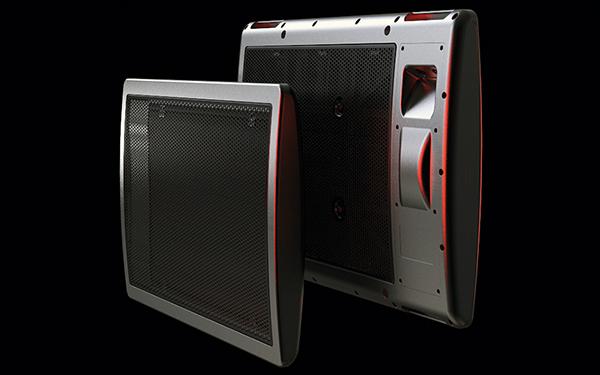

Photos
Key Features
- Discreet, high-clarity Distributed Mode Loudspeaker technology.
- Blends seamlessly into any environment (can be painted or covered).
- Wide dispersion angle for even sound coverage (165° horizontal and vertical).
- Ideal for boardrooms, museums, galleries, and high-end residential installations.
Applications
Churches
Educational Facilities
Gymnasiums
Airports & Transit
Performing Arts Centers
Government Facilities
Portable Audio Systems
Immersive Venues
Hardware Details
The DML 500 utilizes innovative Distributed Mode Loudspeaker (DML) technology to create sound across its entire surface, resulting in exceptionally clear and intelligible audio with wide dispersion. Its flat, panel-like design allows for discreet integration into walls or ceilings.
Technical Specifications
System
Frequency Range (-10dB)75Hz – 20kHz
Frequency Response (±6dB)85Hz – 20kHz
Coverage165° Conical
Sensitivity92 dB
Max SPL123 dB
Impedance8 ohms
Power (Cont/Prog/Peak)200W / 300W / 600W
High Pass Filter90Hz Butterworth (2nd order)
Driver
TypeFlatPanel Transducer
Exciters4 × DML Exciters
Voice Coil32 mm
WindingCopper-Clad Aluminum
SuspensionStandard Spider
Design
Design PrincipleBending Wave Modal
Radiator Area400 × 575 mm
MaterialCarbon Fiber Honeycomb
InputSpeakon NL4 (+1/–1, loop +2/–2)
Physical
Dimensions550 × 800 × 90 mm
(inches)21.6 × 31.5 × 3.5
Weight20.3 kg (44 lbs)
Shipping Size650 × 800 × 250 mm
Shipping Weight23.2 kg (51 lbs)
