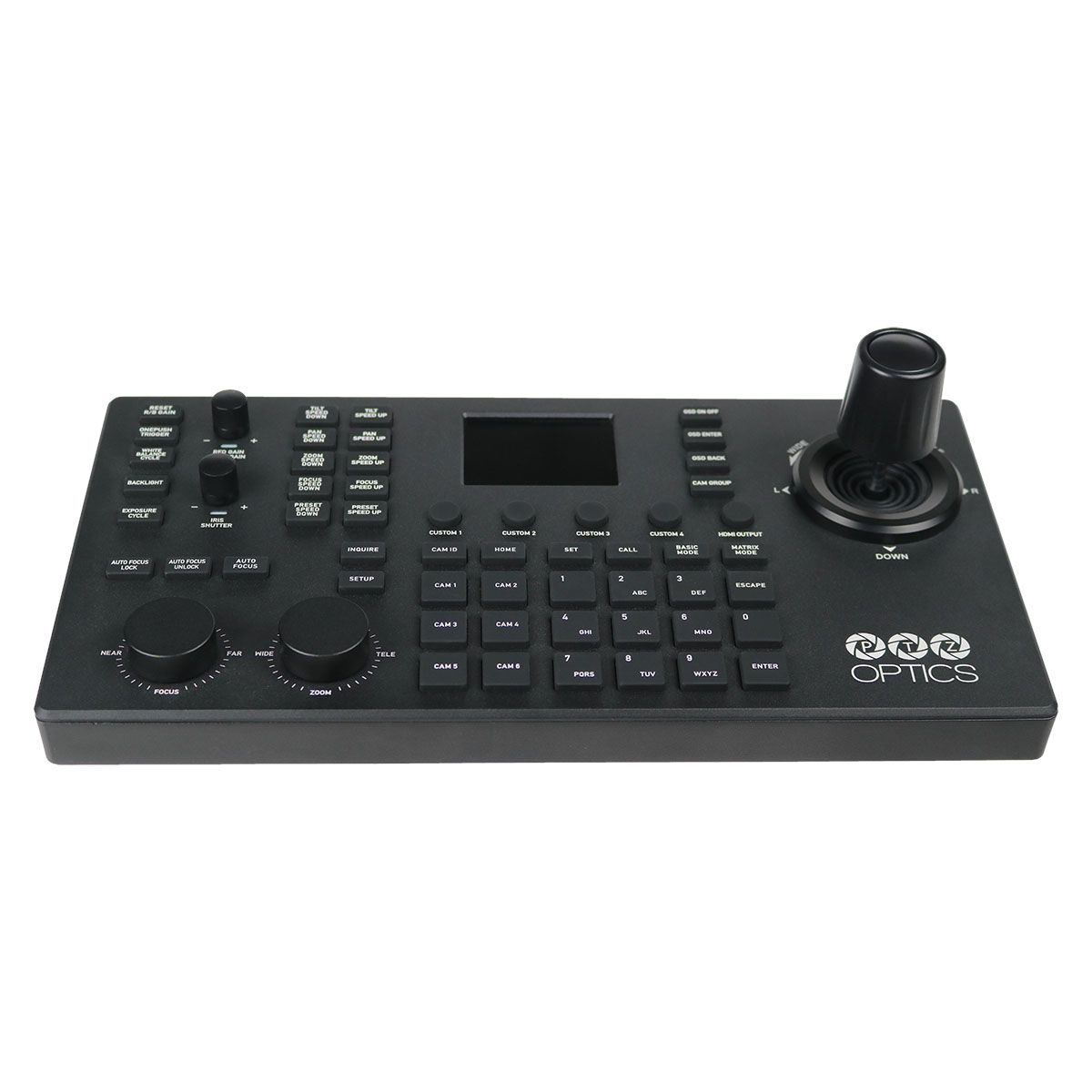

PTZOptics SuperJoy
Photos
Key Features
- Universal PTZ Control: Works with PTZOptics, HuddleCamHD, and most VISCA-over-IP cameras.
- Precision Joystick: Smooth pan, tilt & zoom with adjustable speed for fine framing.

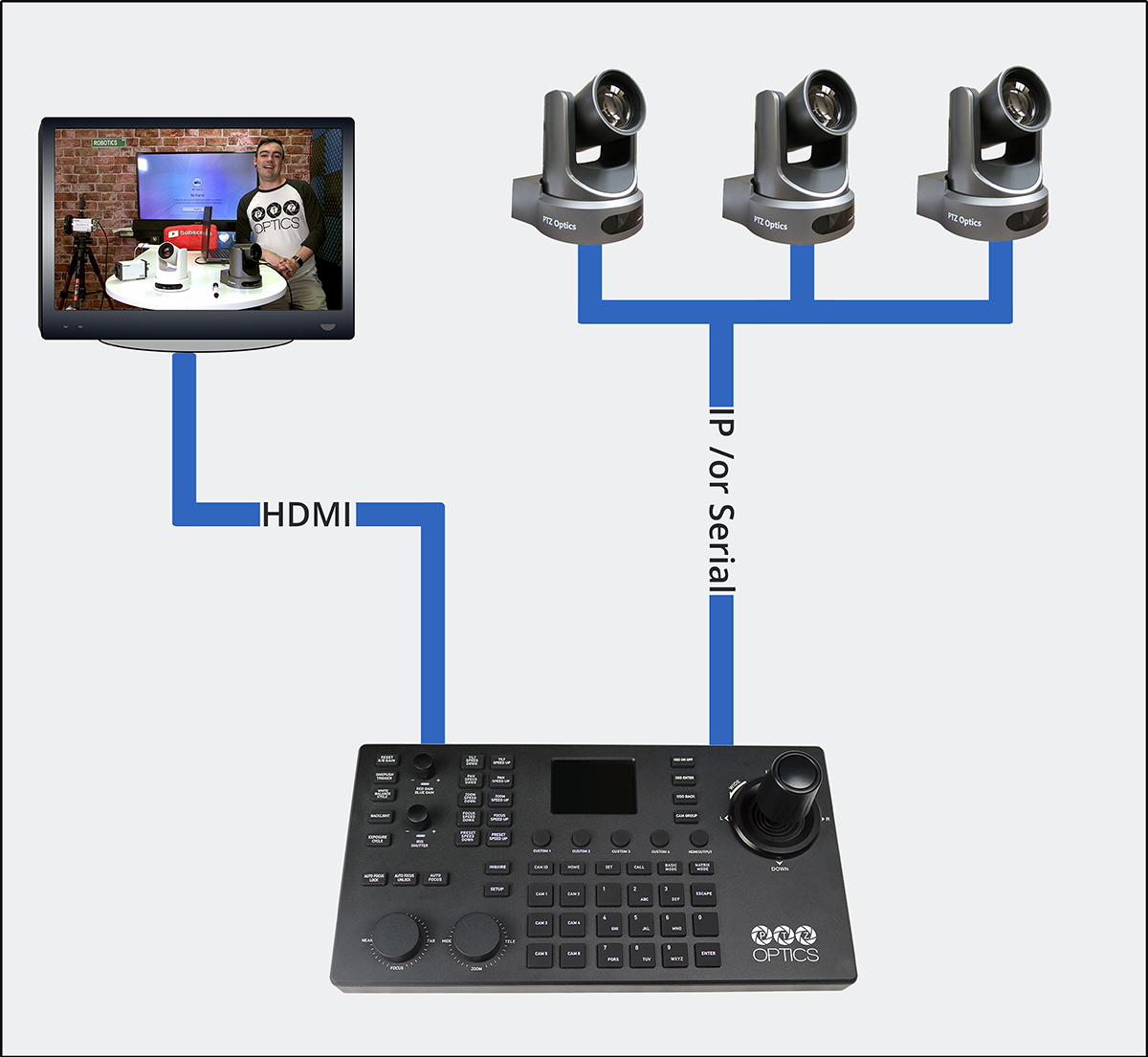

- Multi-Camera Switching: Supports 255 IP cameras + 7 RS-232 cameras.

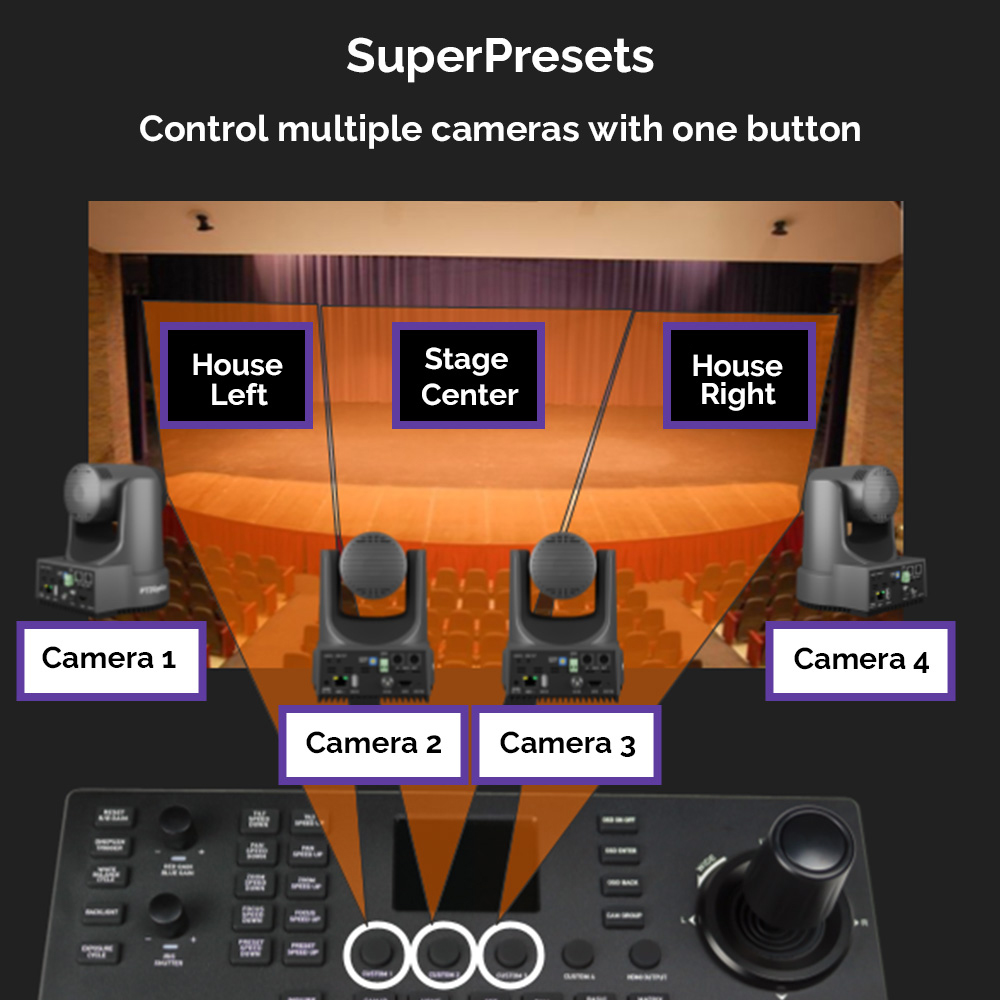

- Custom Presets & Buttons: Store 255 presets & assign quick scene-recall shortcuts.
- PoE Support: Power & control via single Ethernet cable.
- Advanced Tactile Interface: Illuminated buttons, mode indicators, and bright LCD display.
- Flexible Protocols: VISCA-IP, RS-232/422/485, ONVIF, Pelco.
Gallery
Hardware/Software Details
- Hardware: Professional joystick, LCD display, PoE Ethernet, RS-232/422/485, USB config port.
- Software/Control: VISCA, VISCA-IP, Pelco-D/P, ONVIF; user profiles, custom presets & groups.

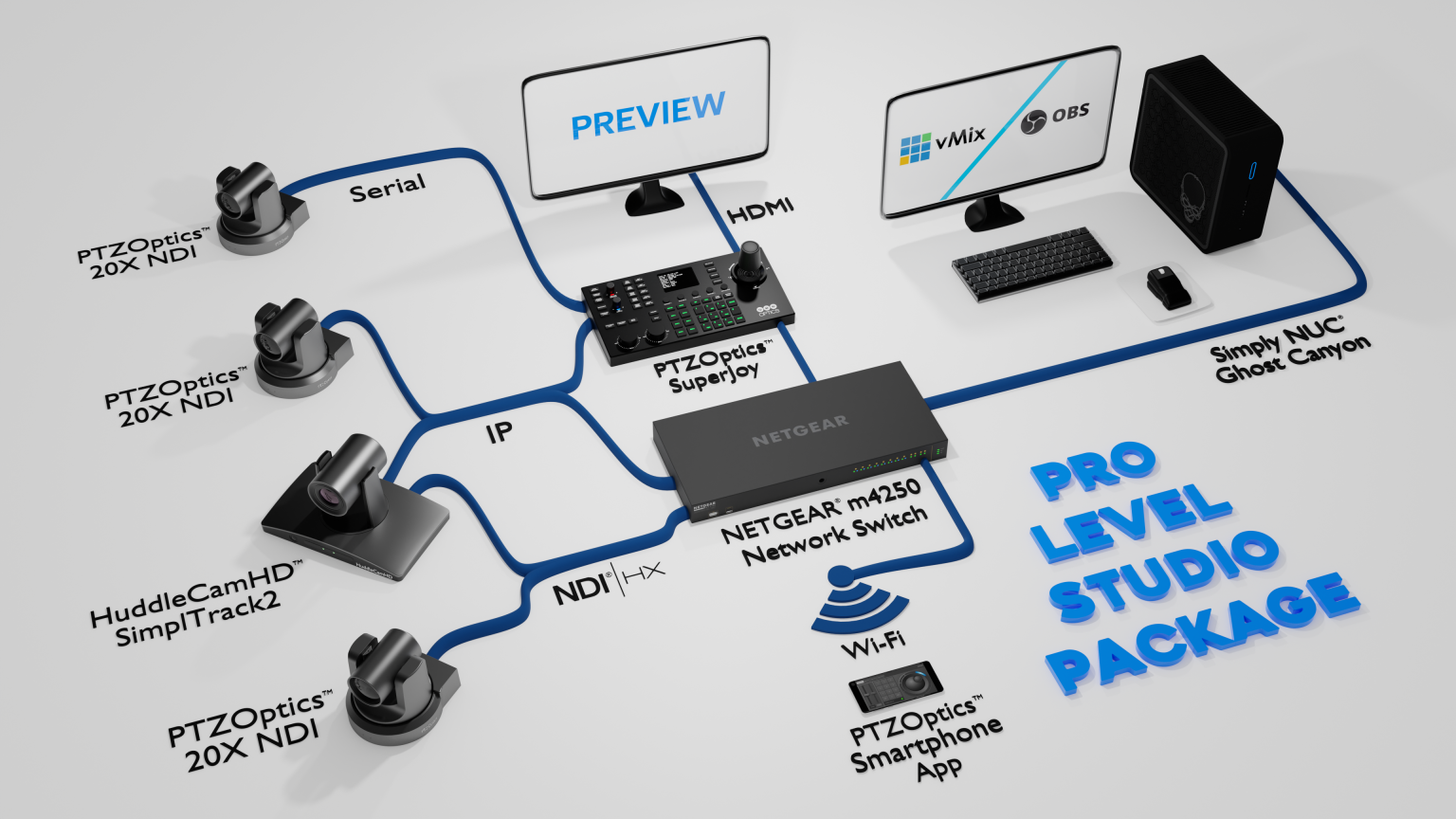

- Integration: Ideal for broadcast studios, live events, worship, classrooms & hybrid AV setups.
Applications
Broadcast & Live Production
Multi-Camera AV Systems
Churches & Worship
Corporate Events & Conferences
Live Streaming Studios
Production Control Rooms
Technical Specifications
Model
PT-SUPERJOY-G1
Control & Protocols
ProtocolsVISCA, VISCA over IP, Pelco-D / Pelco-P
CompatibilityMulti-brand PTZ Cameras
Max CamerasUp to 253
Groups5 Groups (7 + 225 Channels)
Connectivity

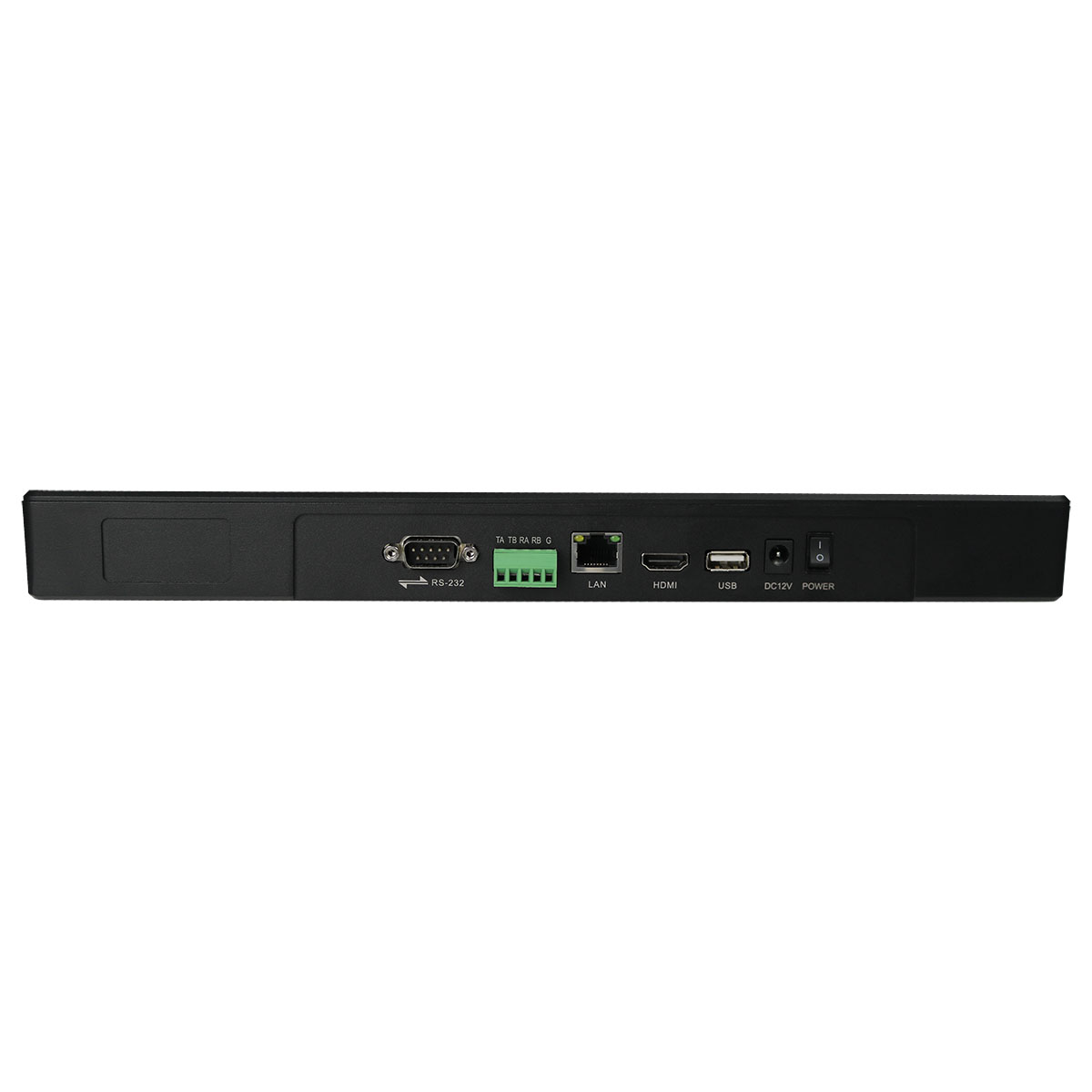

InterfacesEthernet, RS232, RS422, RS485
NetworkTCP / UDP (IP Control)
PoESupported (802.3af)
USBUSB 2.0 (Firmware / Config)
Video Output
OutputHDMI 1.3
ResolutionUp to 1080p
Performance
Baud Rate1200 – 19200 bps
Max DistanceEthernet: 100m / RS485: 1200m
Power
Power Supply12V DC / PoE
Power Consumption6W
Physical
Dimensions354 × 180 × 101 mm
Weight1.7 kg
MaterialAluminum
UsageIndoor
Warranty
Manufacturer Warranty2 Years
