PTZOptics Move 4K

Photos

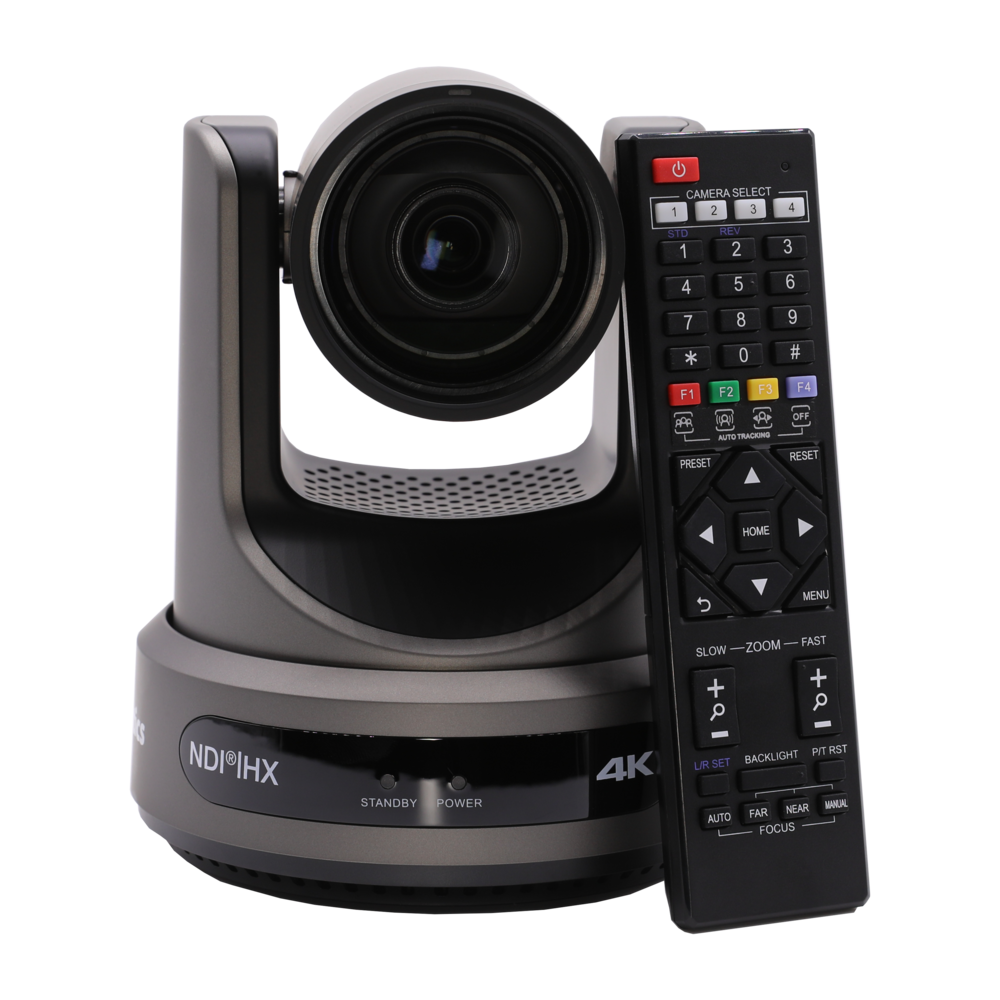

PTZOptics Move 4K front view with accessory

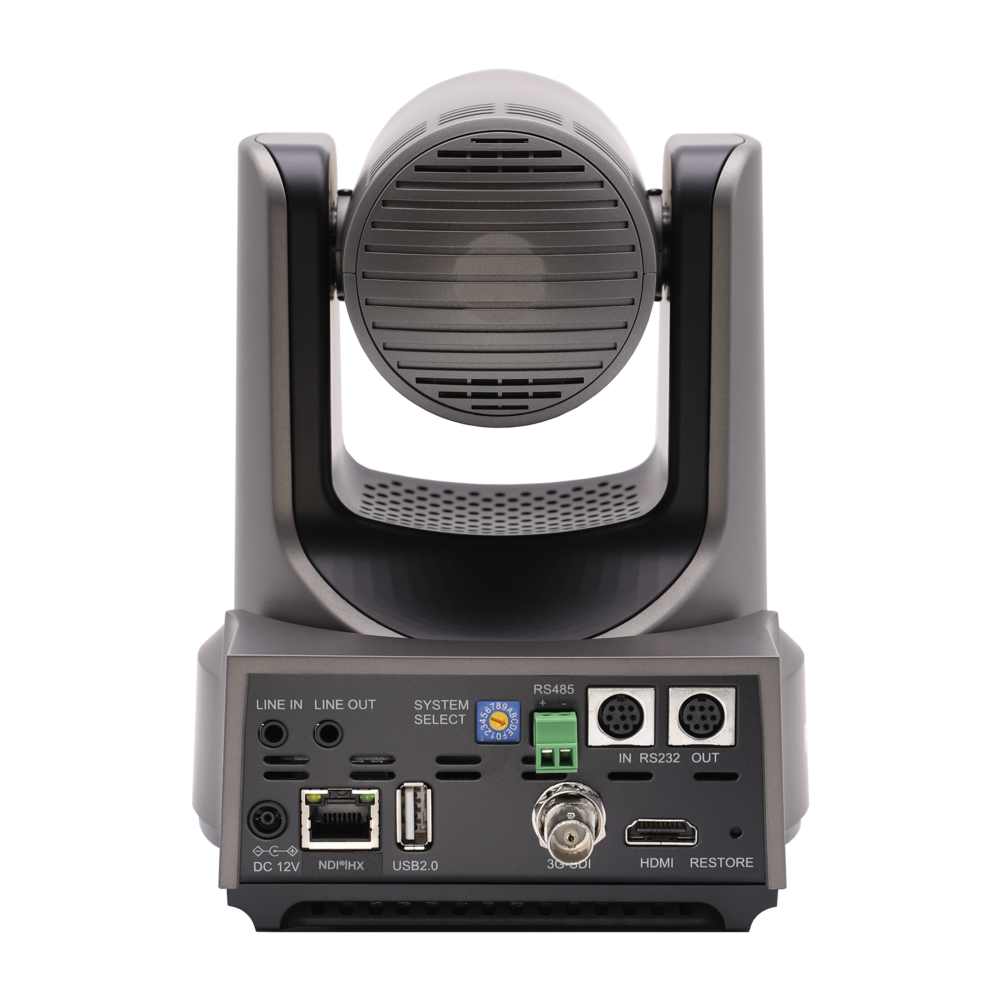

PTZOptics Move 4K rear view
PTZOptics Move 4K hero image

Key Features

  • Native 4K Resolution — up to 4K @ 60fps for ultra-clear image quality.
  • Advanced Auto-Tracking — built-in AI follows presenters smoothly.
  • High-Quality Optical Zoom — 12x / 20x / 30x lens options.
  • PoE+ Support — single cable for power + control.
  • Excellent Low-Light Performance.
  • Broadcast Frame Rates.

Gallery

Voice tracking

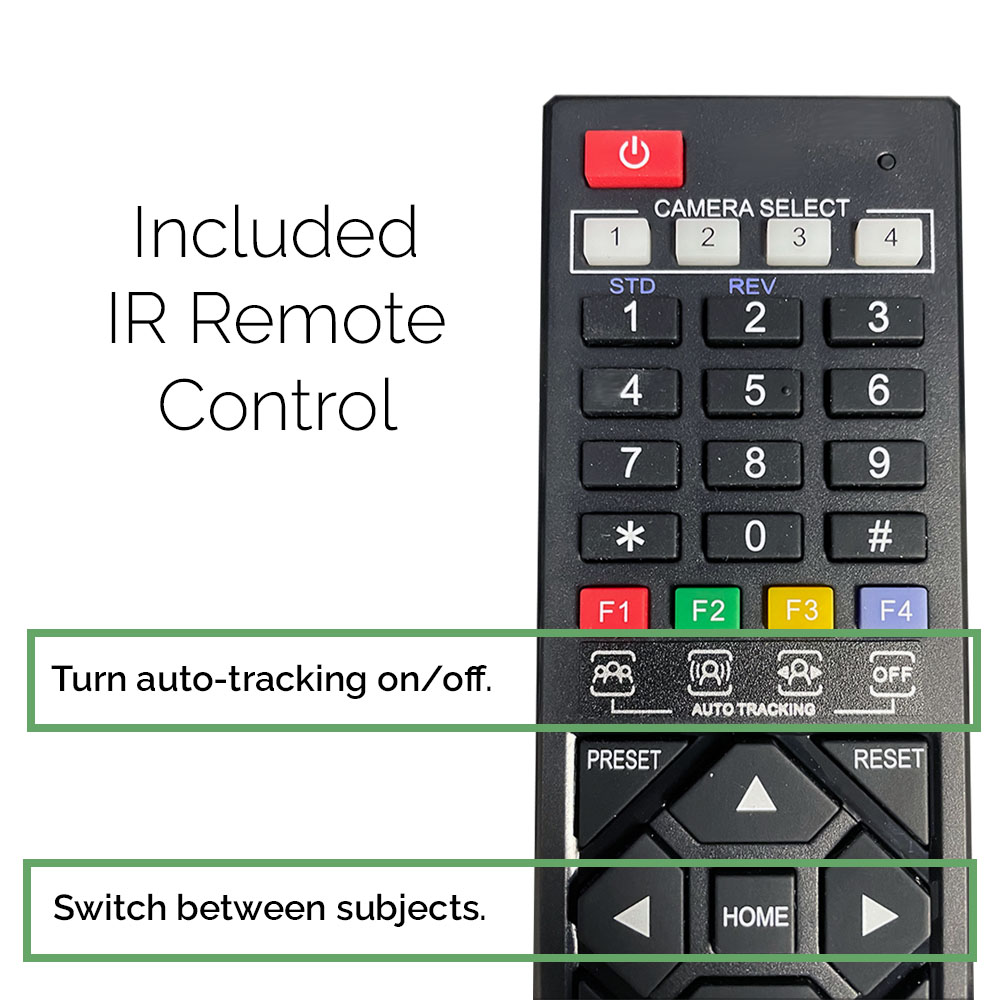

IR Remote

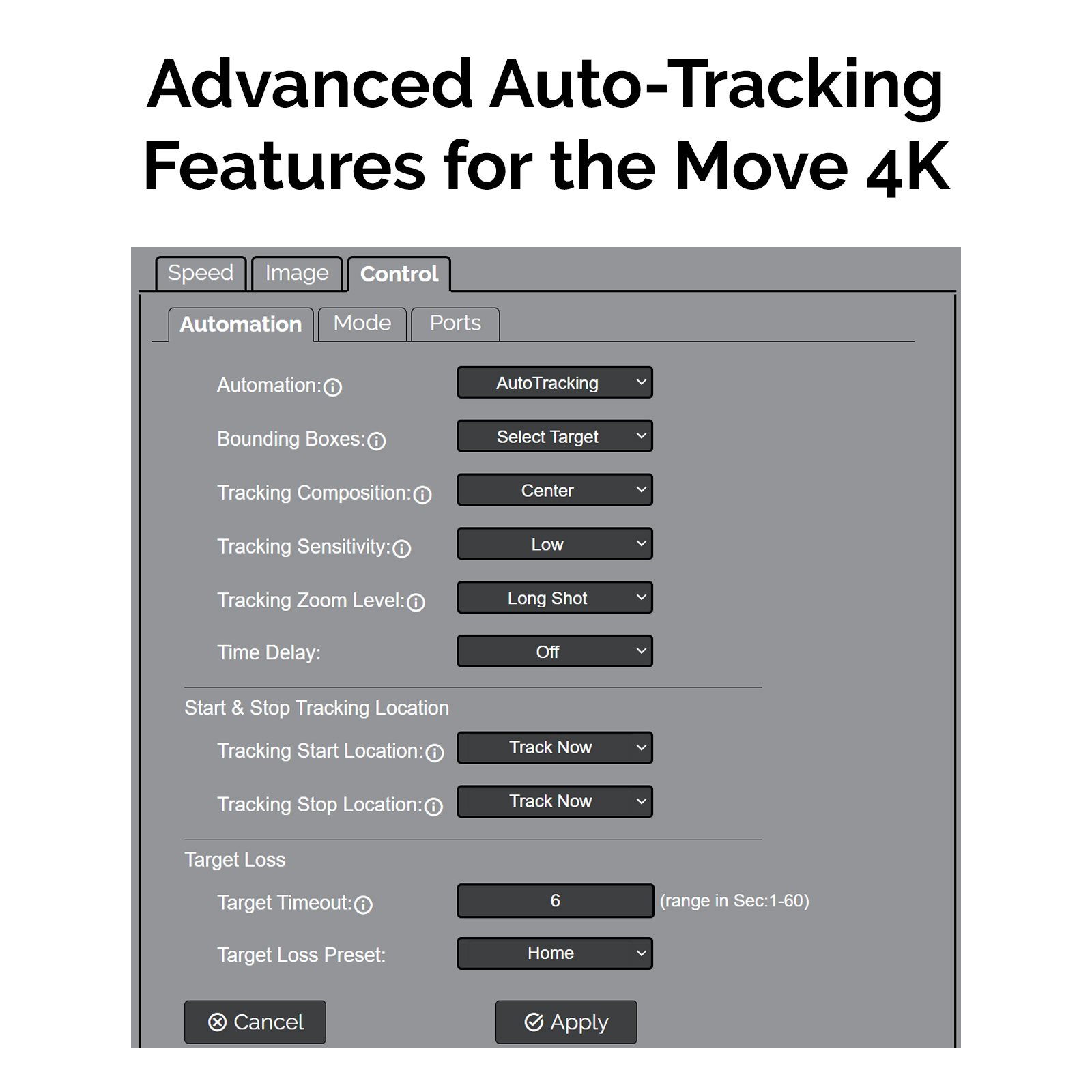

Auto tracking features

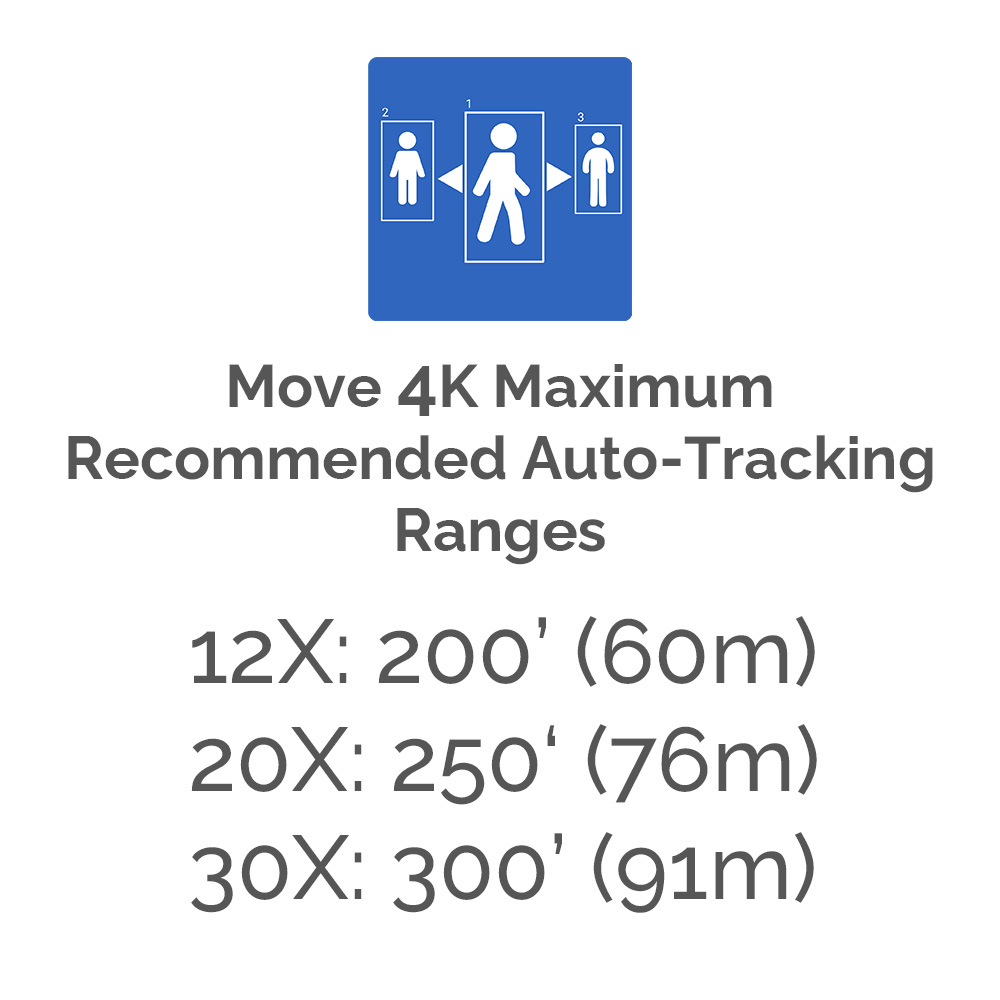

Tracking distances

Hardware & Software Details

Hardware

  • Sony 4K sensor
  • HDMI 2.0, SDI
  • USB 3.0, Ethernet (NDI, PoE+)
  • RS-232 / 485

Software / Control

  • NDI|HX, RTSP, RTMP(S)
  • VISCA IP / Serial
  • Pelco-D / Pelco-P
  • Compatible with OBS, vMix, TriCaster

Applications

Live Broadcasting
Churches & Worship
Corporate Events
Educational Institutions
Streaming Studios
Conferences

Technical Specifications

Camera

SensorSony CMOS (1/2.5" – 1/1.8")
ResolutionUp to 4K @ 60fps
Minimum Illumination0.5 Lux

Lens

Optical Zoom12X / 20X / 30X
Field of ViewUp to 80°
Tracking DistanceUp to 300 ft

Video & Connectivity

OutputsHDMI, SDI, USB, IP
StreamingNDI|HX, RTSP, RTMP
CompressionH.264 / H.265

PTZ Performance

Pan Range±170°
Tilt Range-30° to +90°
Presets255

Control

ProtocolsVISCA / Pelco-D / Pelco-P
InterfacesIP, RS232, RS485

Physical

DimensionsApprox. 140–170 mm width
Weight1.4 – 2.0 kg
Power12V DC / PoE
