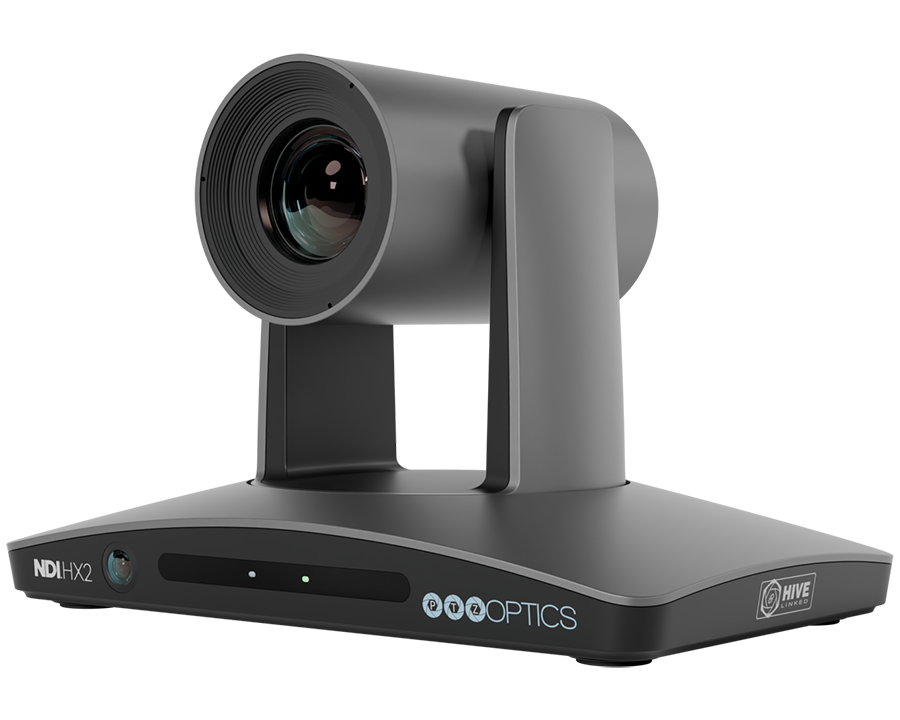

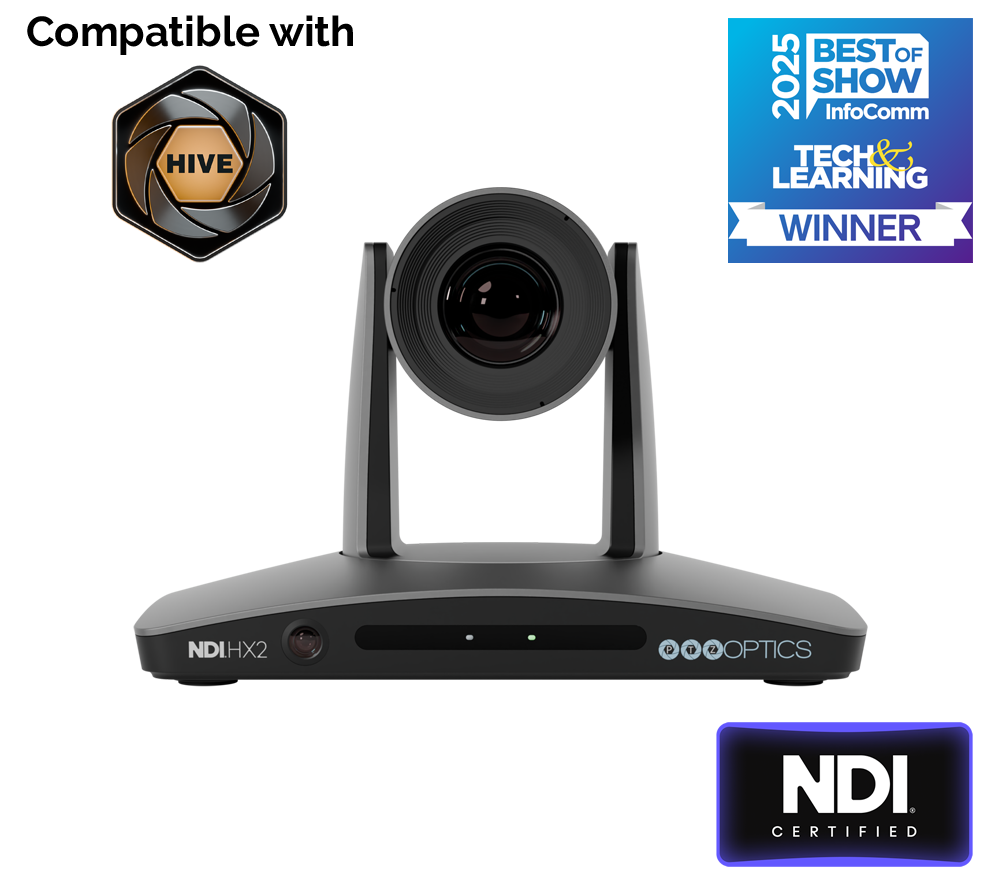

PTZOptics SimplTrack3
Photos
Key Features
- AI-Powered Auto-Tracking: Advanced AI and dual-lens tech automatically follow presenters without manual control.

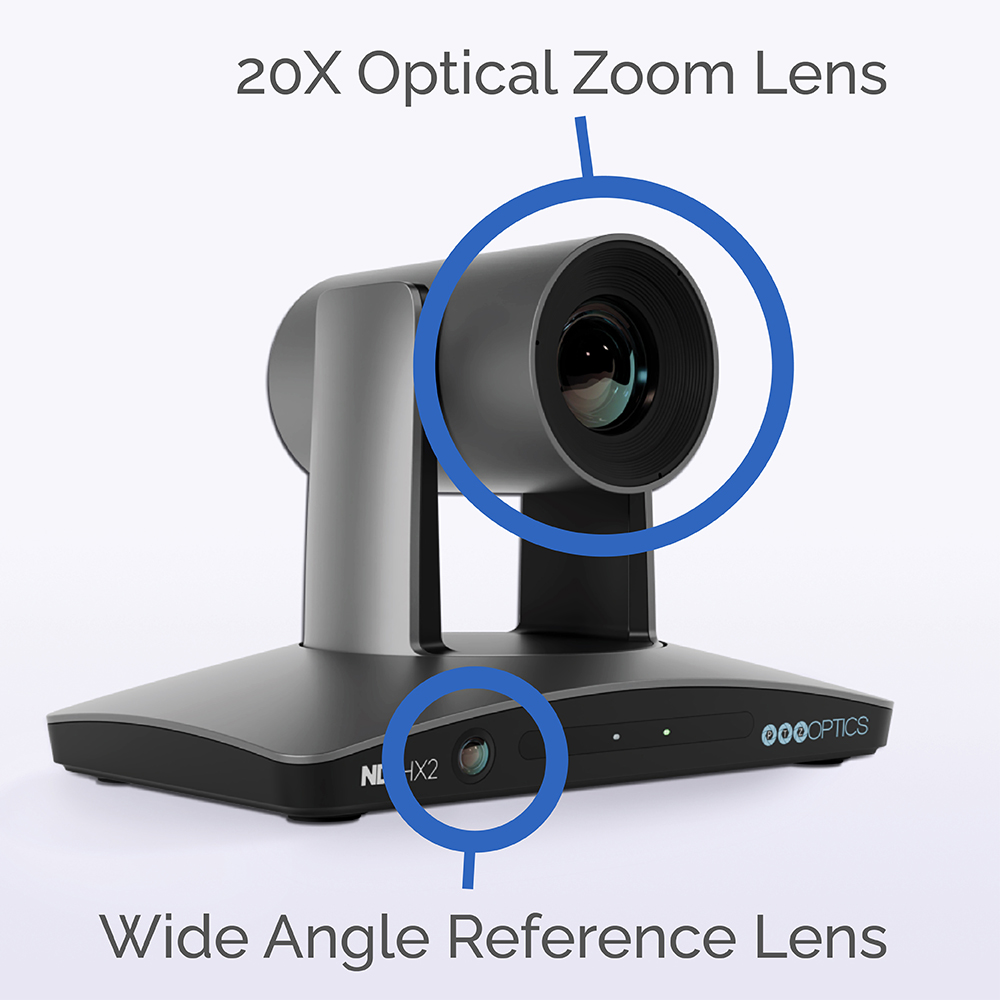

- Dual-Lens Design: Panoramic reference lens for tracking + PTZ lens for high-quality close-ups.
- Plug-and-Play Setup: USB, HDMI, SDI, and IP streaming outputs — minimal configuration needed.
- Flexible Mounting Options: Wall, ceiling, tripod, or tabletop mounting for classrooms, auditoriums, and conferences.
- Crystal-Clear 1080p Video: Full HD 1080p60 for smooth, detailed streaming and recording.
- Power over Ethernet (PoE+): Power, control, and video on one cable for cleaner installs.
- Wide Compatibility: Works with Zoom, Teams, OBS, vMix, TriCaster and similar platforms.
- Zone-Based Tracking: Predefine tracking zones or disable tracking in areas for predictable framing.
Gallery
Hardware & Software Details
- Hardware: Dual-lens auto-tracking system with 20x optical zoom, 1080p60 output, HDMI, 3G-SDI, USB 3.0, IP streaming (RTSP, RTMP, NDI|HX), PoE+, RS-232/485.
- Software/Control: Web UI, IP interface, remote control; configurable tracking modes, sensitivity, framing and exclusion zones. Compatible with OBS, vMix, TriCaster, Wirecast.
- Integration: Ideal for lecture capture, hybrid classrooms, worship spaces, and corporate training — supports AV-over-IP and USB workflows.
Applications
Lecture Capture & Smart Classrooms
Corporate Training & Presentations
Churches & Sermon Tracking
Conference Rooms & Automation
Live Events & Presentations
Hands-Free Video Production
Designed for automatic presenter tracking in classrooms, corporate environments, and houses of worship, eliminating the need for manual camera operation.
Technical Specifications
Camera
SensorSony CMOS (1/2.8")
Effective Pixels2.14 MP
Resolution1080p @ 60fps
Minimum Illumination0.5 Lux
Lens & Tracking
Optical Zoom20X
Focal Length4.7mm – 94mm
Field of ViewUp to 71° (Tracking Lens)
Reference Lens FOVUp to 101°
Tracking SystemDual Sensor Auto Tracking
Video & Connectivity
OutputsHDMI, SDI, USB, IP
StreamingNDI|HX, RTSP, RTMP
IP ResolutionUp to 1080p60
USB OutputUp to 1080p60
PTZ Performance
Pan Range±170°
Tilt Range-30° to +90°
Pan SpeedUp to 120°/s
Tilt SpeedUp to 90°/s
Presets255
Control
ProtocolsVISCA / Pelco-D / Pelco-P
InterfacesIP, RS232
IR ControlSupported
Physical
Dimensions243 × 157 × 163 mm
Weight2.59 kg
MaterialAluminum + Plastic
Power12V DC / PoE
