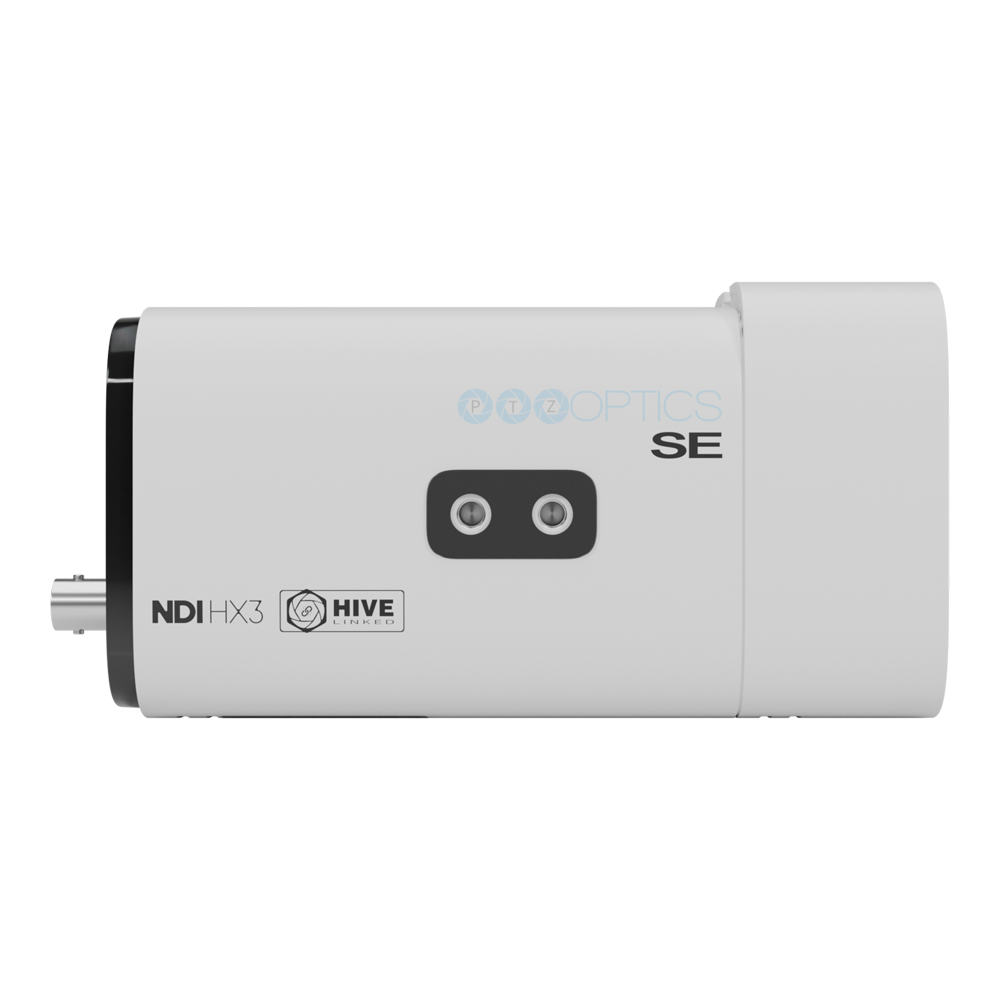

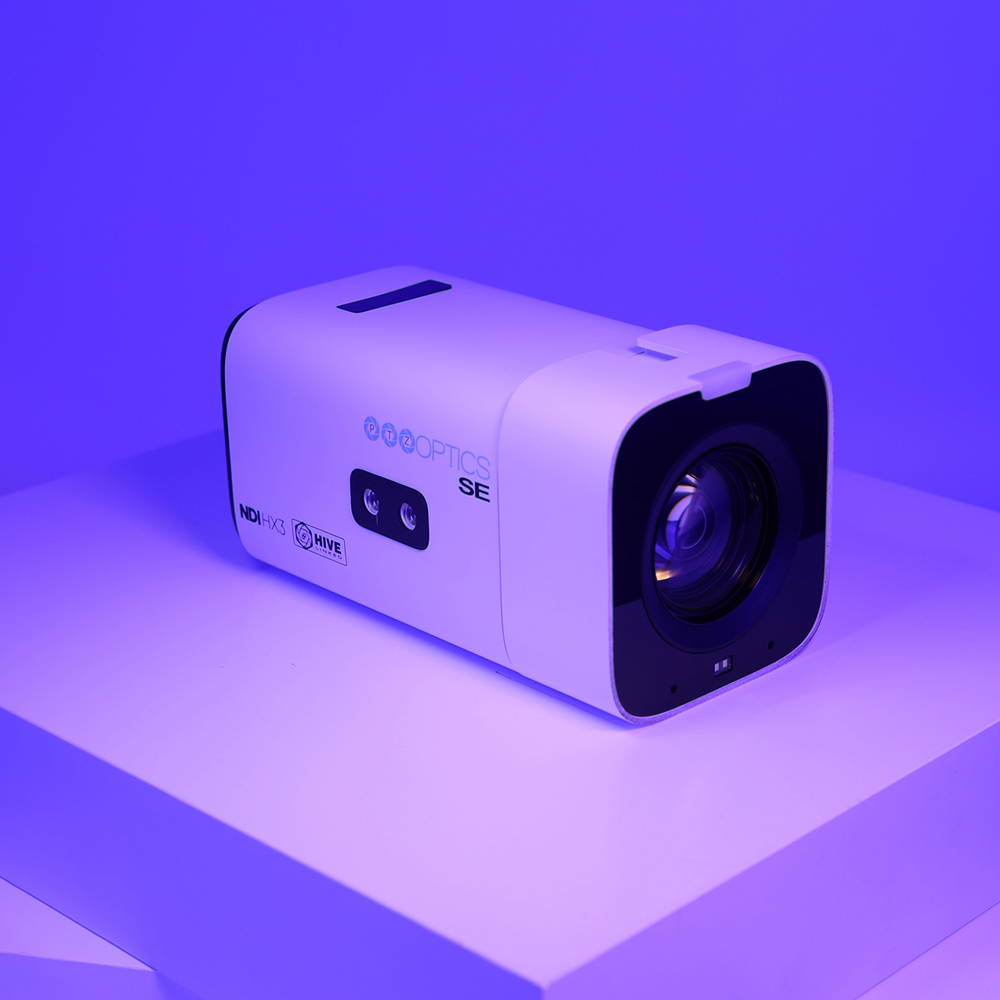

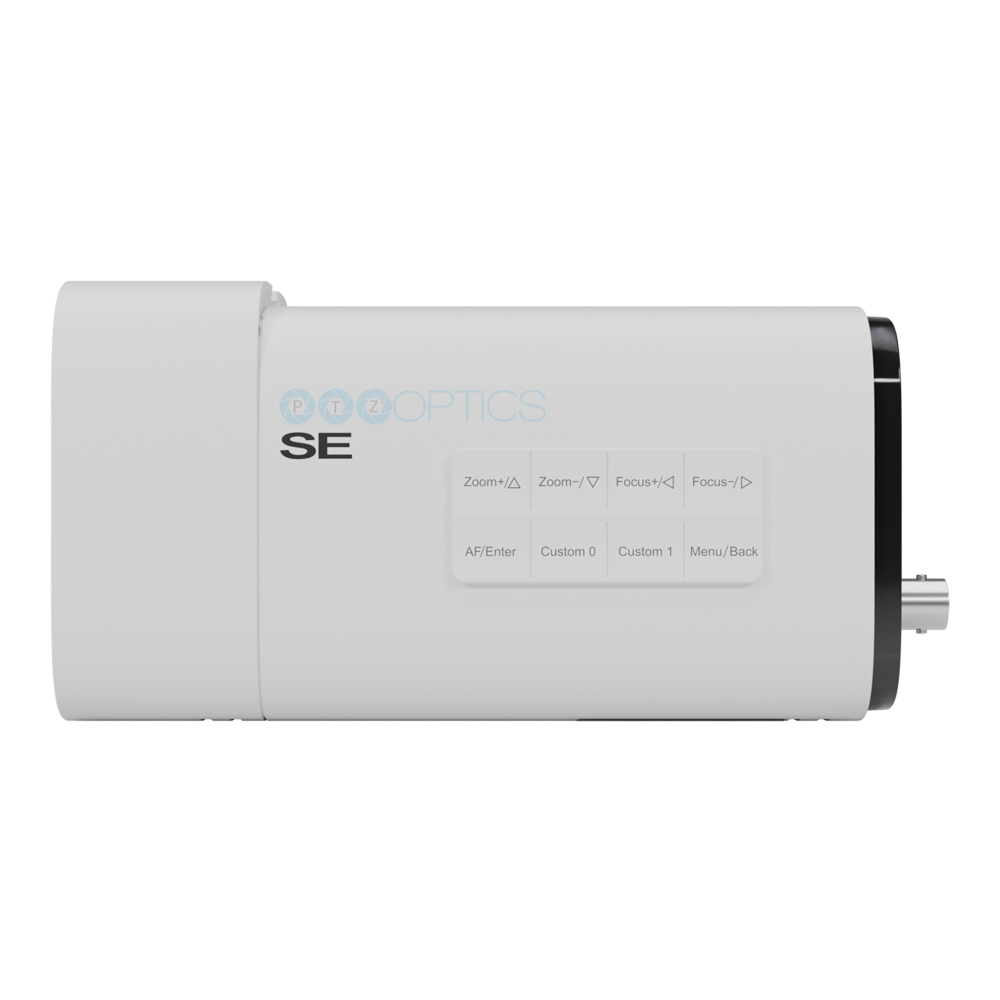

PTZOptics Studio SE
Photos
Key Features
- Full HD Resolution: Exceptional 1080p60 video performance for professional and educational use.
- Fixed Lens Design: Consistent framing — ideal for permanent installs and set-and-forget workflows.
- Compact Build: Low-profile enclosure for discreet placement in studios and meeting rooms.
- Reliable Connectivity: HDMI, SDI, USB, and IP streaming outputs for flexible integration.
- PoE+ Enabled: Power and control over a single Ethernet cable for cleaner setups.
- Optimized for Streaming: Supports standard streaming formats for platform compatibility.
Hardware & Software Details
- Hardware: Full HD CMOS sensor, fixed-focus lens, HDMI 2.0, 3G-SDI, USB 3.0, Ethernet (NDI|HX, PoE+), 3.5mm audio input, RS-232/485.
- Software/Control: VISCA over IP, Pelco-D/P, NDI|HX, RTSP/RTMP(S); configurable via web interface. Compatible with OBS, vMix, Wirecast, TriCaster, Zoom, Teams.
- Integration: Ideal for classrooms, studios, and hybrid AV installations — stable performance for fixed applications.
Applications
Content Creation & YouTube Studios
Podcast & Streaming Studios
Live Streaming & Webinars
Corporate Video Production
Online Courses & E-Learning
Social Media Content Creation
Technical Specifications
Models
PT12X-SE (Gray / White)
PT20X-SE (Gray / White)
PT30X-SE (Gray / White)
Camera
SensorSony CMOS (1/2.8")
Resolution1080p @ 60fps
Effective Pixels2.07 MP
Minimum Illumination0.5 Lux
Lens
Optical Zoom12X / 20X / 30X
Field of ViewUp to 85°
Digital ZoomSupported
Video & Connectivity
OutputsHDMI, SDI, USB-C, IP
StreamingNDI|HX3, RTSP, RTMP
CompressionH.264 / H.265 / MJPEG
Audio Input3.5mm Line In
PTZ Performance
Pan Range±170°
Tilt Range-30° to +90°
Pan/Tilt SpeedUp to 100°/s
Presets255
Control
ProtocolsVISCA / Pelco-D / Pelco-P
InterfacesIP, RS232, RS485
Physical
Dimensions142 × 169 × 189 mm
Weight1.36 – 1.47 kg
MaterialAluminum + Plastic
ColorGray / White
Power12V DC / PoE
