FlatPanel Audio LS212 SubwooferPunchy Bass
Photos
Key Features
- High-power, low-profile subwoofer.
- Designed to complement FlatPanel Audio DML speakers.
- Dual 12-inch drivers for deep, impactful bass.
- Delivers extended low-frequency response for full-range audio systems.
Applications
Churches
Educational Facilities
Gymnasiums
Performing Arts Centers
Government Facilities
Immersive Venues
Hardware Details

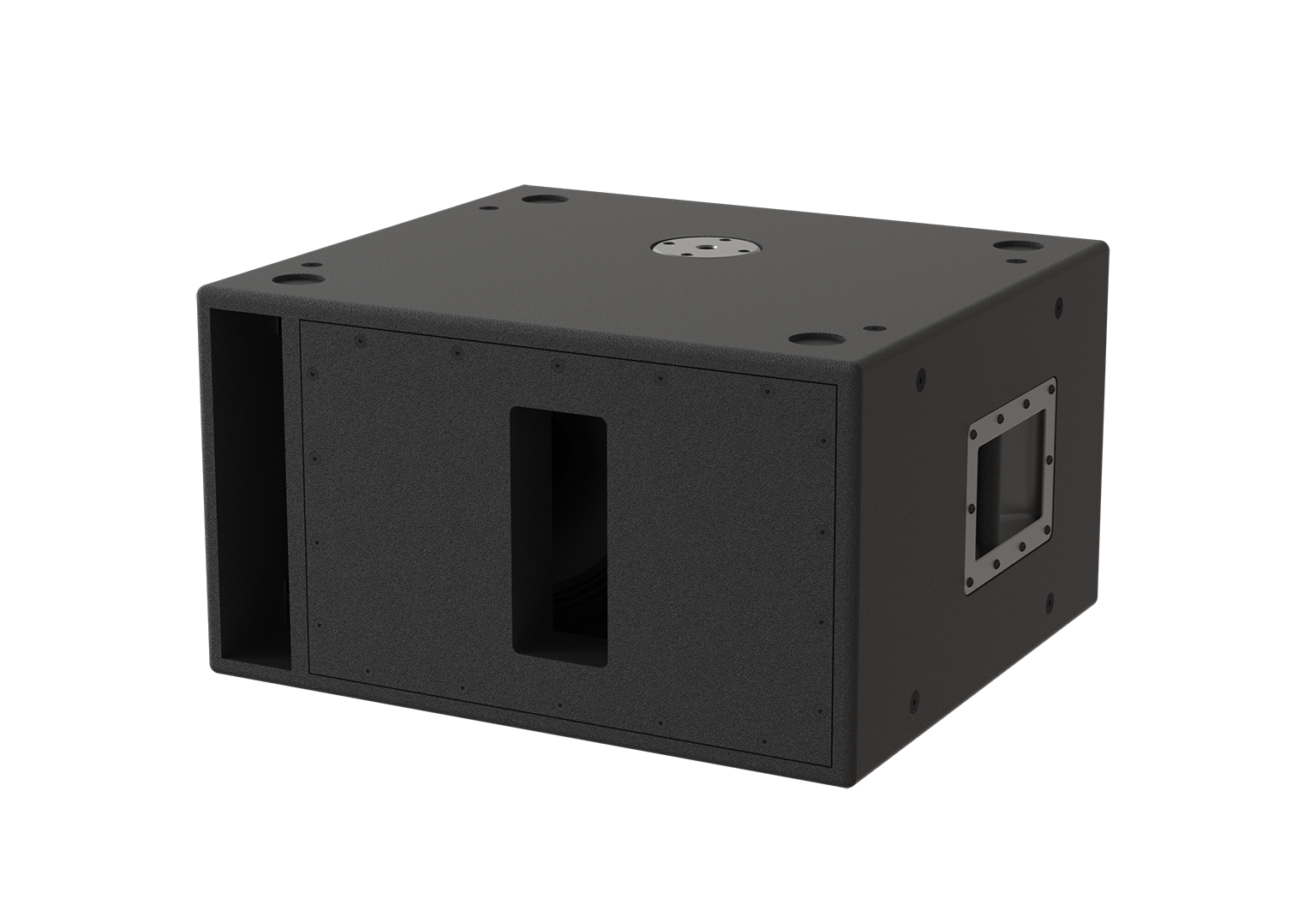

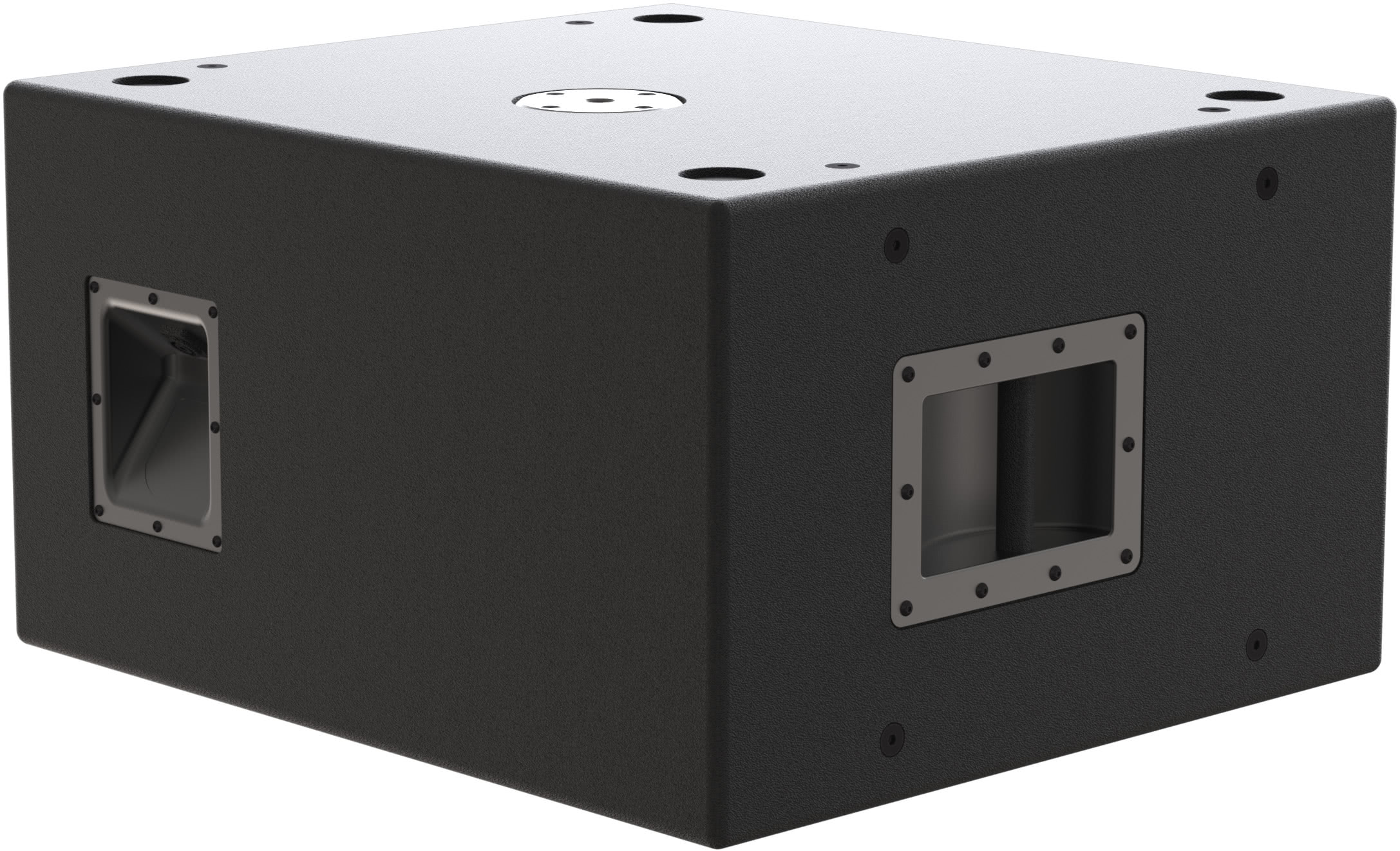

The LS212 is built to deliver powerful low-end performance within a surprisingly slim cabinet. Equipped with two custom-engineered 12-inch drivers, it pairs seamlessly with FlatPanel Audio’s DML speakers to create a full-range, high-fidelity system. The low-profile enclosure makes it ideal for architectural environments where traditional subwoofers are too bulky or visually intrusive — such as corporate venues, houses of worship, performance stages, and premium installations.
Technical Specifications
System
Frequency Range40Hz – 300Hz
Frequency Response45Hz – 120Hz
Sensitivity97 dB
Max SPL130 dB (peak)
Impedance4 ohms
Power800W / 1600W / 2400W
Driver
LF Drivers2 × 12-inch
Voice Coil75 mm
WindingCCA
MagnetNeodymium
Design
Type6th Order Bandpass
ChamberAsymmetrical Dual Chamber
MountingM10 Rigging (16 points)
Pole MountM20 Top Mount
Physical
Dimensions676 × 378 × 605 mm
(inches)27 × 15 × 24
Weight31.75 kg (70 lbs)
Shipping Weight42.3 kg (93 lbs)
