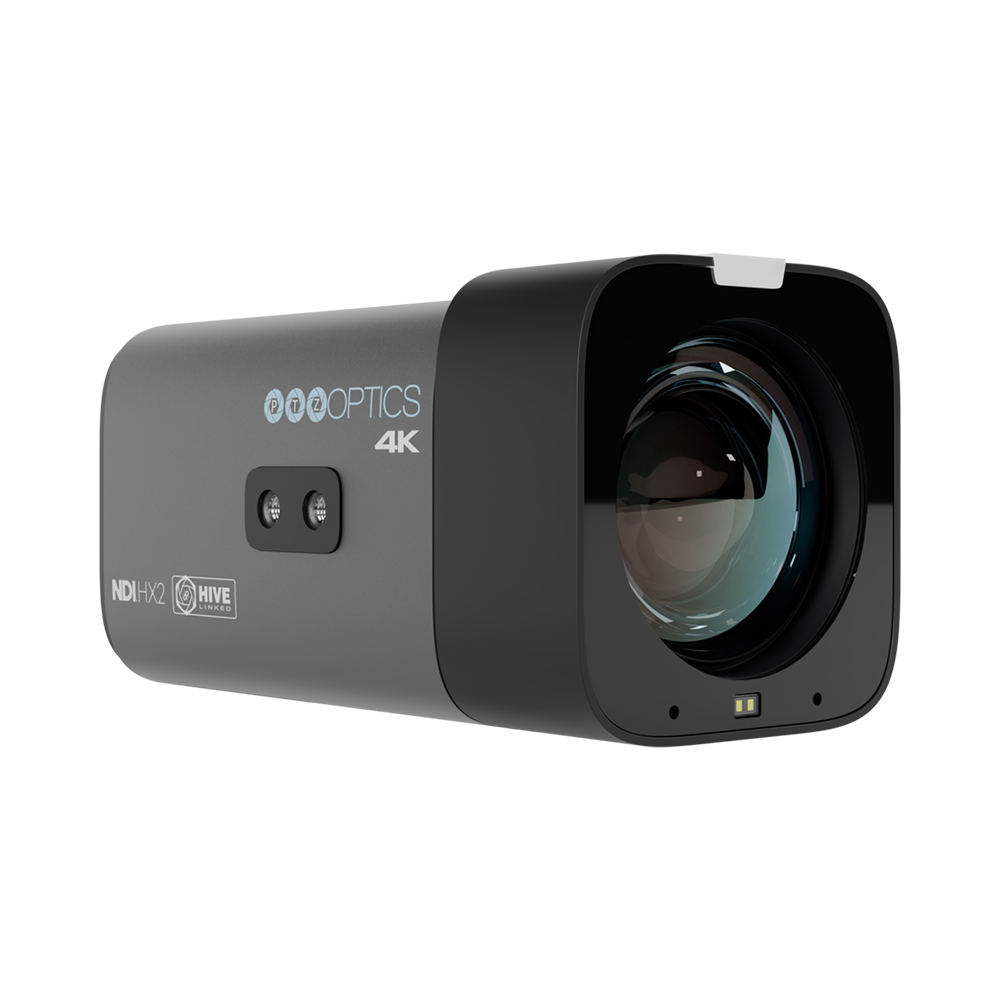

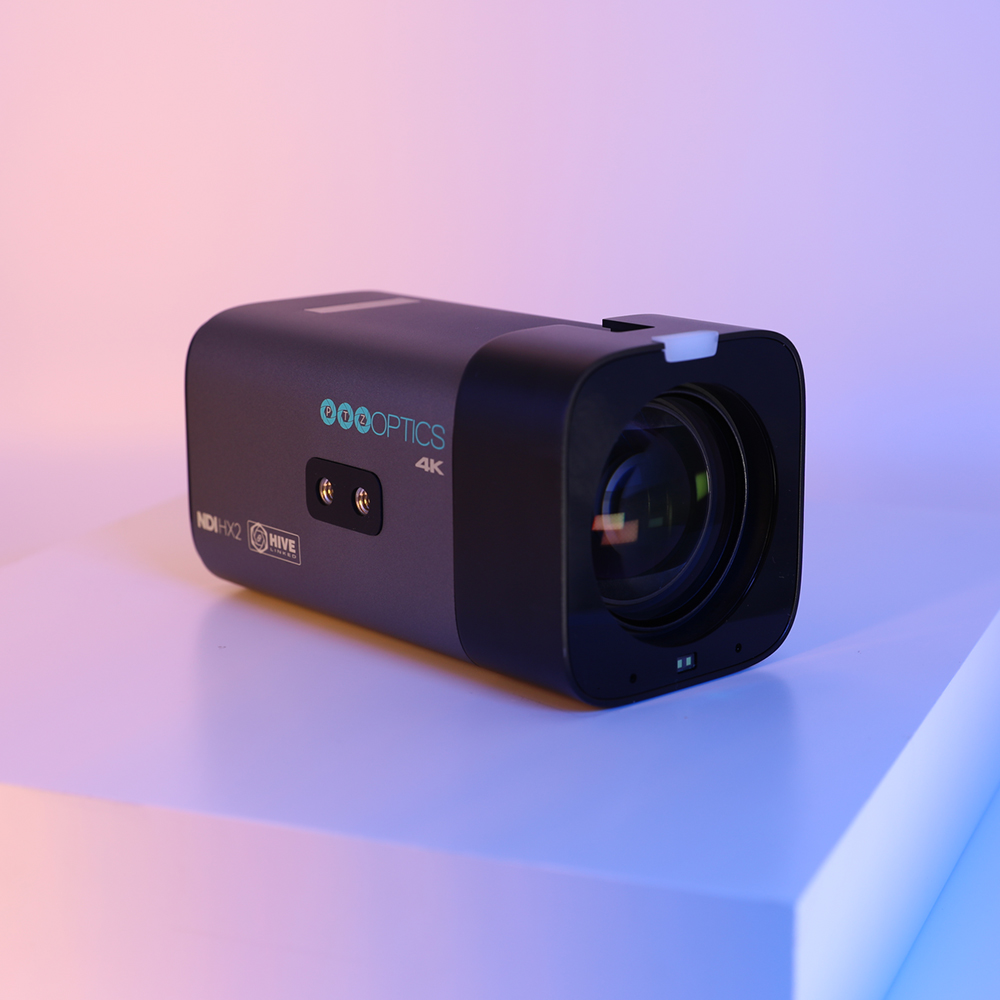

PTZOptics Studio 4K
Photos
Key Features
- 4K Ultra HD Resolution: Up to 2160p @ 30fps for professional broadcast and streaming.
- Wide-Angle Fixed Lens: Broad field of view, ideal for studio setups and meeting rooms.
- Compact & Discreet Design: Small form factor for tight or aesthetic-sensitive installs.
- Excellent Low-Light Performance: Sharp, noise-free video in dim environments.
- Multiple Video Outputs: HDMI, USB, and IP streaming (NDI|HX, RTSP, RTMP).
- PoE+ Support: Single-cable power, video, and control for simpler installs.
Hardware & Software Details
- Hardware: 1/2.5” 4K CMOS sensor, fixed lens, HDMI 2.0, USB 3.0, IP streaming (NDI|HX, RTSP, RTMP). PoE+, RS-232 control, 3.5mm audio input.
- Software/Control: Web UI and IP control interface; image adjustments (exposure, white balance, color tuning). Compatible with OBS, vMix, TriCaster, Zoom Rooms.
- Integration: Ideal for studios, lecture capture, conferencing — integrates with AV-over-IP systems.
Applications
Content Creation & YouTube Studios
Podcast & Streaming Studios
Live Streaming & Broadcasting
Corporate Video Production
Online Training & E-Learning
Social Media & Content Recording
Technical Specifications
Models
PT12X-STUDIO-4K (Gray / White)
PT20X-STUDIO-4K (Gray / White)
Camera
SensorSony CMOS (1/2.8")
ResolutionUp to 4K @ 60fps
Effective Pixels8.4 MP
Minimum Illumination0.5 Lux
Lens
Optical Zoom12X / 20X
Field of ViewUp to 80°
Digital ZoomUp to 16X
Video & Connectivity
OutputsHDMI, SDI, USB-C, IP
StreamingNDI|HX, RTSP, RTMP, SRT
CompressionH.264 / H.265 / MJPEG
Audio3.5mm Line In / Out
Features
Image ControlsFlip, Mirror, Freeze
Presets255
Preset Accuracy0.1°
ProtocolsVISCA, ONVIF, IP
Physical
Dimensions145 × 76 × 78.5 mm
Weight0.64 – 0.68 kg
MaterialAluminum + Plastic
Power12V DC / PoE+
Power ConsumptionMax 18W
