PTZOptics Move SE
Photos
Key Features
- Full HD 1080p60 Output: Delivers smooth, broadcast-quality video ideal for streaming, recording, and conferencing.
- Advanced Auto-Tracking: Built-in AI tracking follows presenters without manual control—great for classrooms and events.
- High-Quality Optical Zoom: Available 12x / 20x / 30x optical zoom models for close-ups and wide coverage.
- PoE+ Support: Power, control, and video over a single Ethernet cable for cleaner installs.
- Low-Light Performance: Advanced image processing for crisp video in dim lighting.

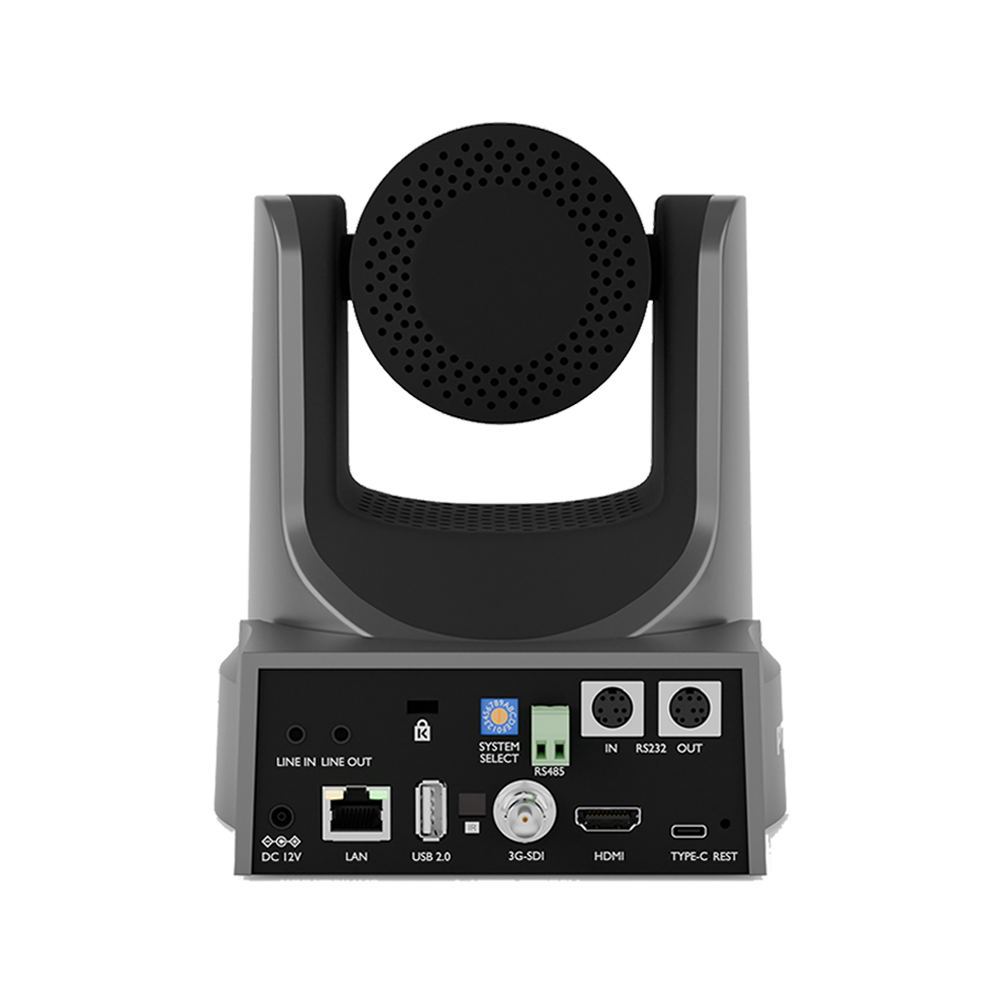

- Multiple Outputs: HDMI, SDI, USB, and IP streaming for hybrid workflows.
- Wide Compatibility: Works with OBS, vMix, Zoom, Teams, and TriCaster.
Gallery
Hardware & Software Details
- Hardware: Full HD CMOS sensor, 12x/20x/30x optical zoom options. HDMI, 3G-SDI, USB 2.0/3.0, IP streaming (RTSP, RTMP, NDI|HX), PoE+, RS-232/485, 3.5mm audio input.

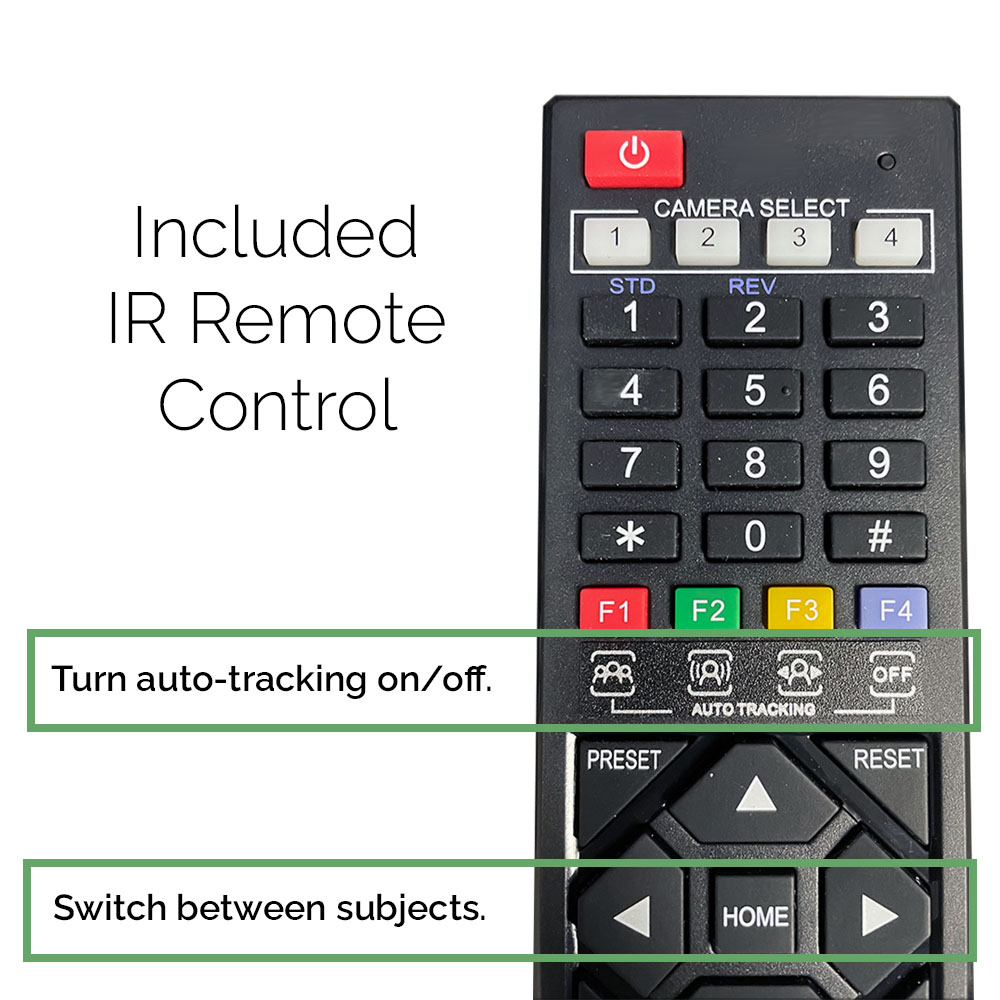

- Software/Control: VISCA over IP/serial, Pelco-D/P, ONVIF; web UI, IR remote, joystick; compatible with OBS, vMix, TriCaster.
- Integration: Ideal for live streaming, hybrid classrooms, houses of worship, and event production.
Applications
Classrooms & Lecture Capture
Corporate Meetings & Conferencing
Churches & Worship
Live Streaming & Webinars
Training Rooms
Small Studios & Content Creation
Technical Specifications
Models
PT12X-SE (Gray / White)
PT20X-SE (Gray / White)
PT30X-SE (Gray / White)
Camera
SensorSony CMOS (1/2.8")
Resolution1080p @ 60fps
Effective Pixels2.07 MP
Minimum Illumination0.5 Lux
Lens
Optical Zoom12X / 20X / 30X
Field of ViewUp to 85°
Tracking DistanceUp to 40m
Video & Connectivity
OutputsHDMI, SDI, USB-C, IP
StreamingNDI|HX3, RTSP, RTMP
CompressionH.264 / H.265 / MJPEG
Audio Input3.5mm Line In
PTZ Performance
Pan Range±170°
Tilt Range-30° to +90°
Pan/Tilt SpeedUp to 100°/s
Presets255
Control
ProtocolsVISCA / Pelco-D / Pelco-P
InterfacesIP, RS232, RS485
Physical
Dimensions142 × 169 × 189 mm
Weight1.36 – 1.47 kg
MaterialAluminum + Plastic
ColorGray / White
Power12V DC / PoE
